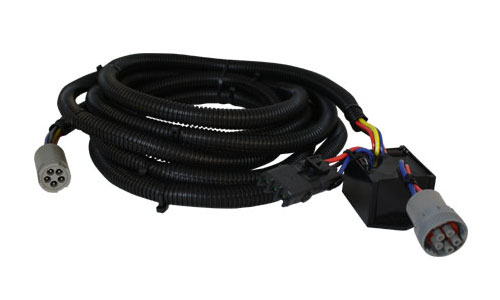

| Custom Junction Cable Harness for industrial vehicles – using 2 part 3M potting compound and split loom for protection, all connections use a wire seal at the termination crimp. 5 pin male circular to 3 position positive lock connector and 5 pin female circular. |
| |
| |
|

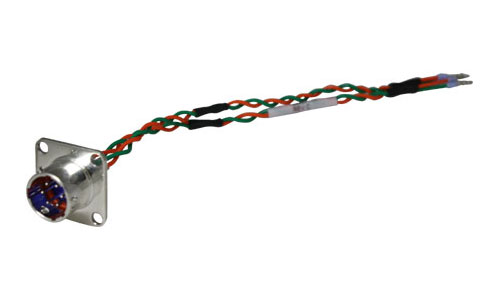

| Custom Panel Mount Cable Assembly – 6 Pin circular male connector with four discrete wires to tinned contact. |
| |
| |
|

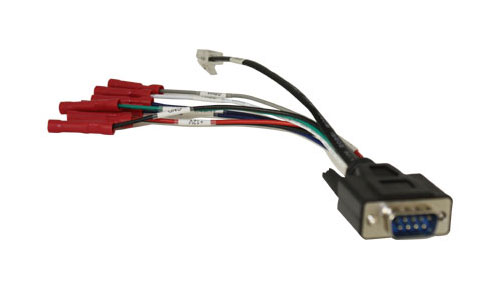

| Custom Overmolded Cable Black DSub 9 position overmolded to RJ11 and seven shrouded spade terminals. |
| |
| |
|

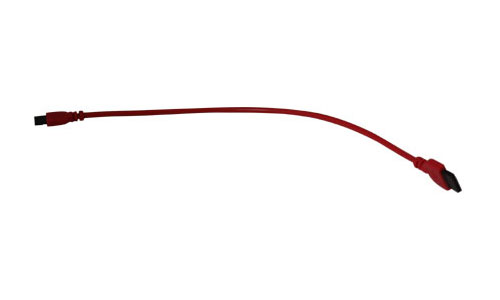

| Custom overmolded 1x6 pin connector to custom 1x4 pin overmolded connector, red wire and overmolds. |
| |
| |
|
| Custom Industrial Crane Cable, two conductor positive lock connector to shrouded spade lugs with industrial protective sheathing (split loom). |
| |
| |
|

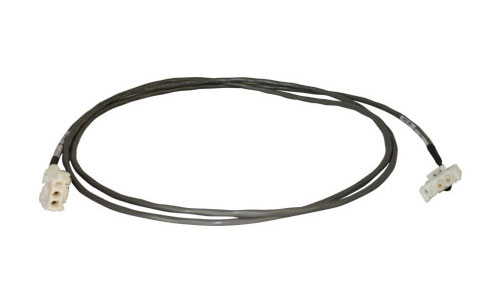

| Custom Cable Assembly for Semiconductor Industry used for Camera Power, 3 circuit connector mate-n-lock UL94V-2 600V to 3 circuit housing mate-n-lock 600V, using twisted pair 18 AWG, 300V PVC cable, contact pins silver over nickel. |
| |
| |
|

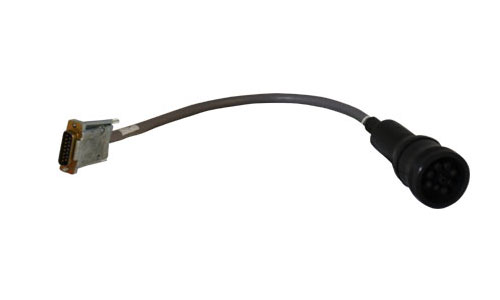

| Custom Cable, 9 pin Military Circular Connector (with molded boot) to 15 pin dsub with metal backshell. |
| |
| |
|

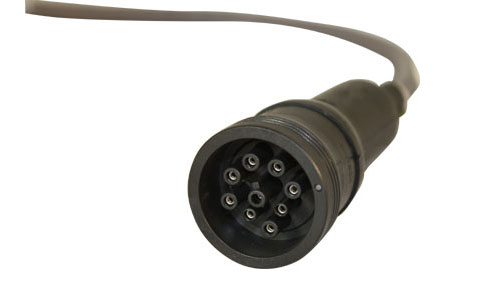

| 9 pin Military Circular Connector with overmolded boot. |
| |
| |
|

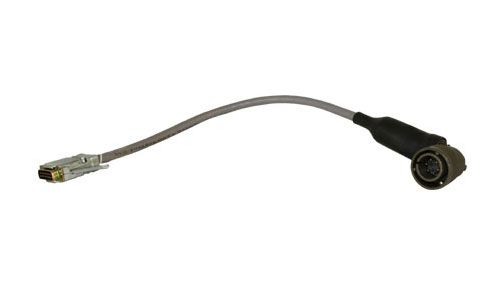

| Custom Cable, Circular Connector (right angle military connector with molded boot) to 15 pin dsub with metal backshell. |
| |
| |
|

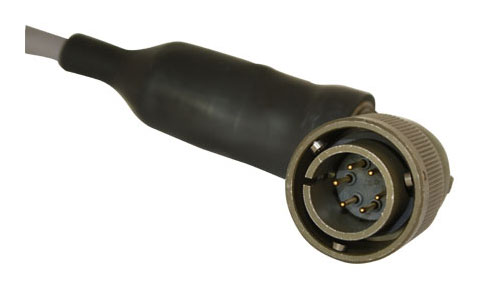

| Right angle military circular connector with overmolded boot. |
| |
| |

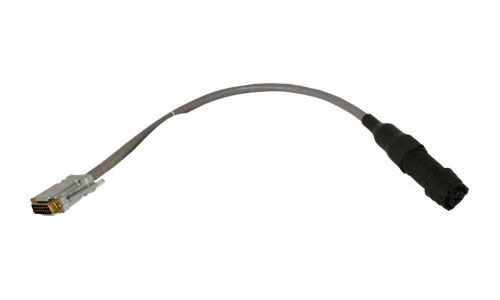

| Custom Cable, Sealed Waterproof (IP-67) Plug Connector with molded boot to 15 pin dsub. |
| |
| |
|
| Waterproof, Sealed (IP-67) 4 position Plug Connector with overmolded boot. |
| |
| |
|

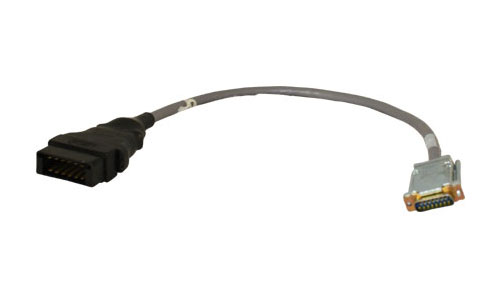

| Custom Cable, Nexiq Pro-Link 12 Pin Packard to 15 pin dsub. |
| |
| |
|

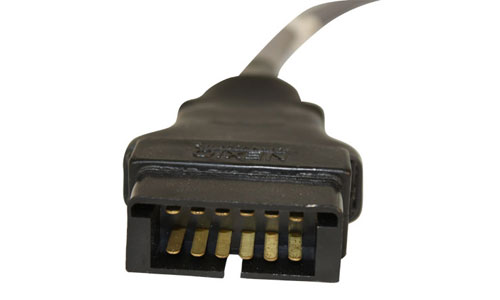

| Nexiq Pro-Link 12 Pin Packard overmolded connector. |
| |
| |
|

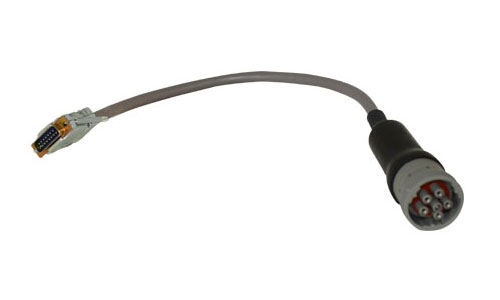

| Custom Cable, 6 Pin Deutsch Circular Connector with molded boot to 15 pin dsub. |
| |
| |
|

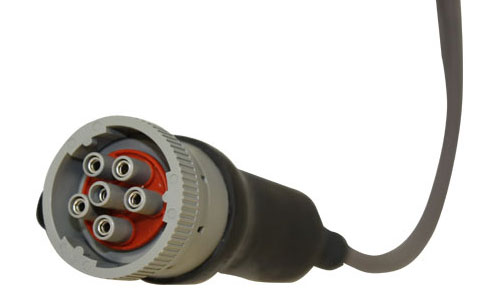

| Overmolded Circular Connector, 6 pin Deutsch. |
| |
| |
|

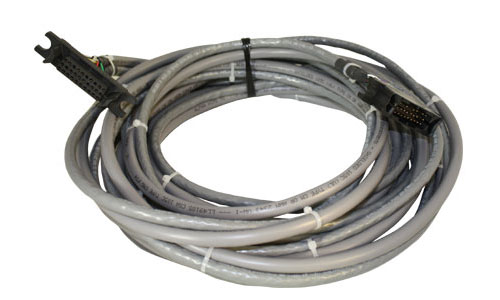

| Custom Cable Assembly, 30 conductor, crimp style, 3x10 male connector to 3x10 female connector, 2 independently jacketed shielded cables. |
| |
| |
|

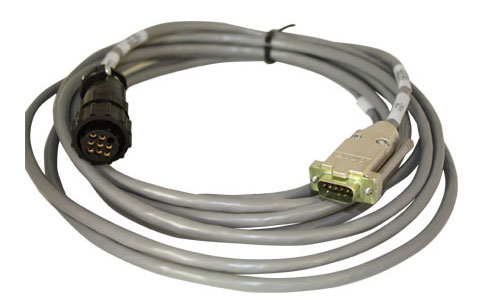

| Custom Cable for Semiconductor Industry, 9pin DSub with die cast backshell to 9 socket circular, using 4 twisted pair, 24AWG with foil shield and drain, crimp pins with gold flash.. |
| |
| |
|

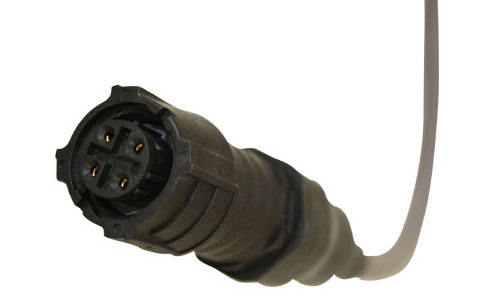

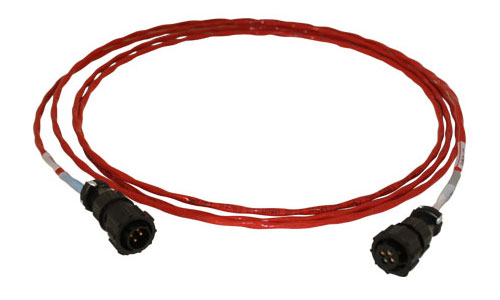

| Custom Cable Assembly with 4 socket circular to 4 pin circular with 16-18AWG crimp pins gold/nickel using 300V, 105C red plenum rated cable with foil and braid shield and color coded identification labels. |
| |
| |
|

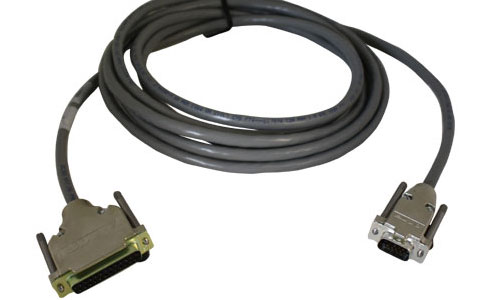

| Custom Cable Assembly for Pneumatic Controller, 15 position plug connector to 25 socket connector with metal backshells, using 7 twisted pair 24AWG cable with foil shield and drain. |
| |
|
|

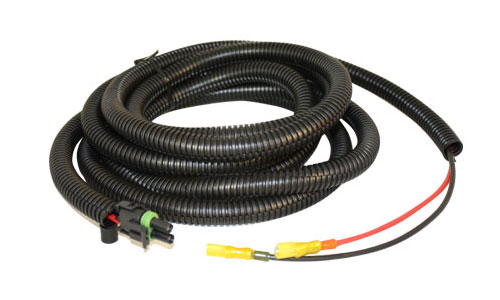

| Custom cable assembly, power distribution module to 6 position circular receptacle housing with high current relay, resistor, 12 awg insulated PVC wire UL1015 in ½” slit convoluted loom tubing. |
| |
|
|

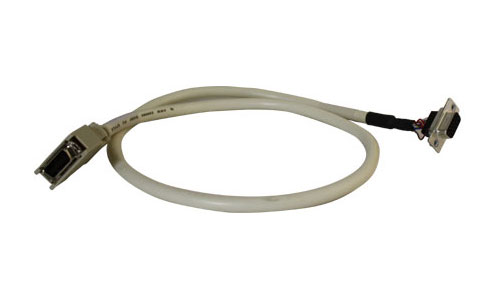

| Custom cable assembly, High Density (HD) 26pin Dsub IDC to HD 15 pin Dsub with 18awg wire. |
| |
|
|

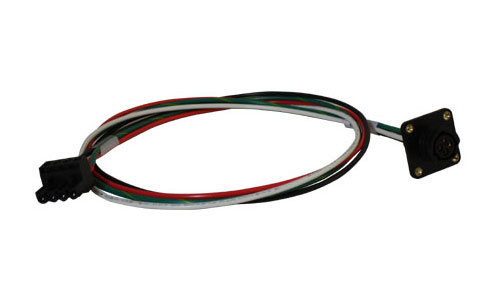

| Custom cable assembly, 4 pin panel mount circular connector to 4 pin receptacle connector with ferrules, discrete wire 1000V moisture resistant 18awg UL Rated E13773. |
| |
|
|

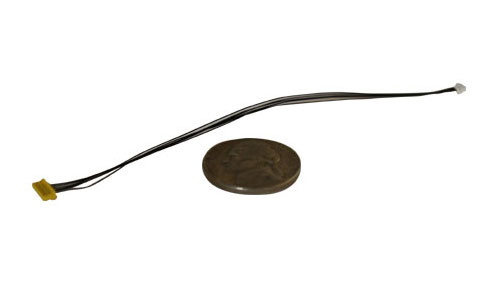

| Microminiature custom cable assembly for Bluetooth, 6 position 0.6 MM IDC receptacle connector to 8 pin connector, 36 awg (gauge) discrete hook-up wire, PTFE, 4 inches. |
|
