Cypress Industries manufactures and designs test fixtures and loopbacks to expedite the testing process in your manufacturing facilities. We can custom design test fixtures (copper or fiber optic) for any application.

Cypress Industries specializes in test fixtures for high-volume telecommunications and networking equipment manufacturers that have fiber optic or electrical test stations. Listed in the table below are many types of our custom test fixtures.


LC Test Fixture	SC Loopback Tester - Empty	SC Loopback Cable

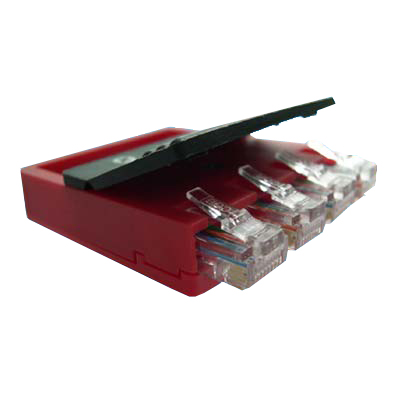

2x6 RJ45 Loopback Tester	2x6 RJ45 Loopback Testers Tester	25 Pair to RJ45 Cable


Custom PCB Jumper Test Fixtures


RJ45 Loopback Cable	SC to SC Tester	LC 1x4 Port to Port

Photo	Description	Part No.
Fiber Test Fixtures

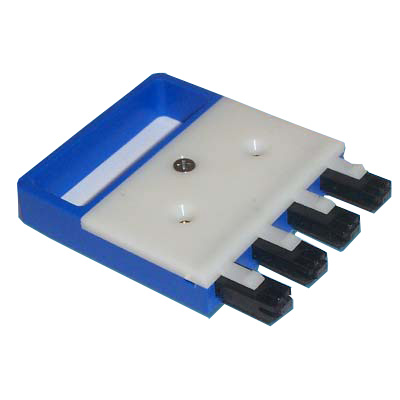

	1x4 MTRJ Fiber Optic Test Fixture Self Looping	TFFOMTRJ1X4SL2
	1x4 LC Fiber Optic Test Fixture Port to Port	TFF0MTRJ1X4PP2
	SC Duplex Fiber Optic Test Fixture	TFFS2SCLB
	1x4 LC Fiber Optic Test Fixture Port to Port, 14mm spacing (Patent Pending)	TFLC1X4PP-14
	1x4 LC Fiber Optic Test Fixture to 1x4 LC Test Fixture 10in length, 14mm spacing (Patent Pending)	TFLC1X4X2-10IN-14
	1x4 LC Fiber Optic Test Fixture Port to Port, 17mm spacing (Patent Pending)	TFLC1X4PP-17
	1x4 LC Fiber Optic Test Fixture to 1x4 LC Test Fixture 10in length, 17mm spacing (Patent Pending)	TFLC1X4X2-10IN-17
	LC to SC Adapter with 90 degree rotation ability (allows SC cables to plug into LC Ports)	FSCLCADP90D
	LC Multimode Loopback Test Fixture	TFFM1LCLB
	LC Singlemode Loopback Test Fixture	TFFS1LCLB
Copper Test Fixtures
	1x4 RJ45 Loopback Text Fixture Self Looping	TFCRJ451X4SL
	2x4 RJ45 Loopback Test Fixture Self Looping	TFCRJ452X4SL

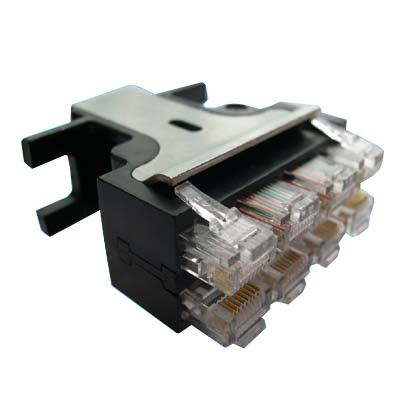

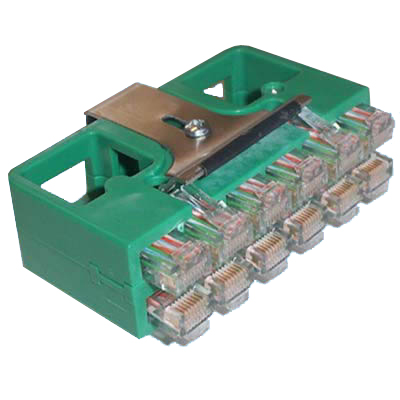

	2x6 RJ45 Loopback Test Fixture Self Looping	TFCRJ452X6SL
	1x4 RJ45 Text Fixture Port to Port	TFCRJ451X4PP
	2x4 RJ45 Test Fixture Port to Port	TFCRJ452X4PP
	2x6 RJ45 Test Fixture Port to Port	TFCRJ452X6PP
Jumpers (Connector to cable to connector)

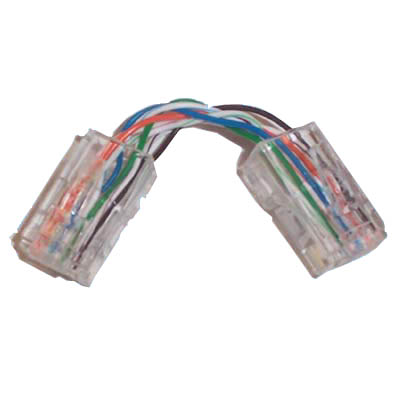

	RJ45 to RJ45 Jumper Cable Three Inch	RJ45RJ4503IN
	BNC to BNC Jumper Cable Eight Inch	BNCBNC08IN
	SMB to SMB Jumper Cable Eight Inch	SMBSMB08IN

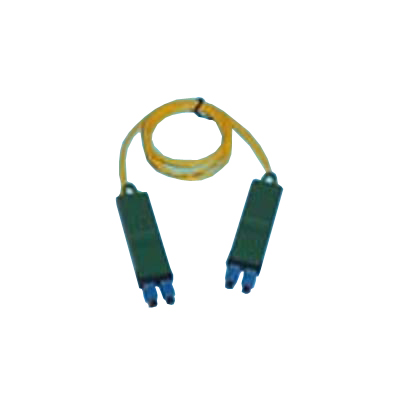

	SC to SC Fiber Optic Jumper Cable Test Fixture "x" Length	TFFS2SCSCXFT
Loopbacks (Cable loops within connector)
	RJ45 Loopback Cable	TFCRJ45SLB-8C
	25 Pair Loopback Cable - Telco Connector with board	25PRLB0IN

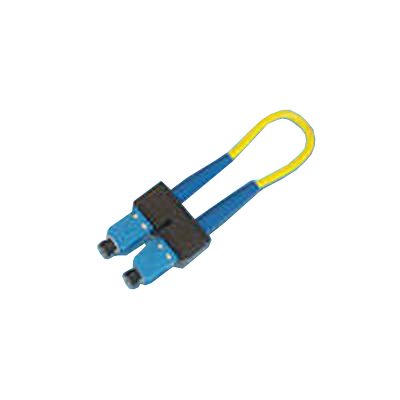

	SC Singlemode Duplex Loopback Cable	FS2SCLB
	SC Multimode Duplex Loopback Cable	FM2SCLB
	MTRJ Singlemode Loopback Cable	FS1MTLB
	MTRJ Multimode Loopback Cable	FM1MTLB
	LC Multimode Loopback Cable	FM1LCLB
	LC Singlemode Loopback	FS1LCLB

All Copper Loopbacks are 1-3, 2-6, 4-7, 5-8 pin out unless specified by the client.
All Copper Jumpers are 1-3, 2-6, 3-1, 4-4, 5-5, 6-2, 7-7, 8-8 unless specified by the client.
Custom cabling configurations can be made for any scenario.

Fiber Optic Loopback Test Fixtures include custom configurations for single and multi-port SC Test Fixtures (sometimes referred to as GBIC Test Fixtures), LC Test Fixtures (sometimes referred to as Small Form Factor Test Fixtures), MTRJ Test Fixtures and others, upon request. Attenuated Test Fixtures are available for any of the models listed. Test fixtures may either be, Loopback (optical signal loops back within connector or test fixture device) or port-to-port (where the optical signal loops from one test fixture to another with a cable between them).

Copper Cable Test Fixtures include custom configurations for multi-port RJ45 Loopback Test Fixtures, DB9 Test Fixtures, Telco or Centronics 50 Test Fixtures, SCSI Test Fixtures and others, upon request.

Cypress Industries has also designed Fiber Optic and Copper test fixture devices for our test fixtures. This will allow you to quickly determine if an operator error has been made in the testing process. LEDs will illuminate when ports are working properly. Custom handling and storage fixtures are also available for the test fixtures listed. These will also expedite the testing process by decreasing handling times.

All Cypress Industries products are 100% inspected and electronically tested.
